　　S-093N 3BHB009885R0001 Other Names:

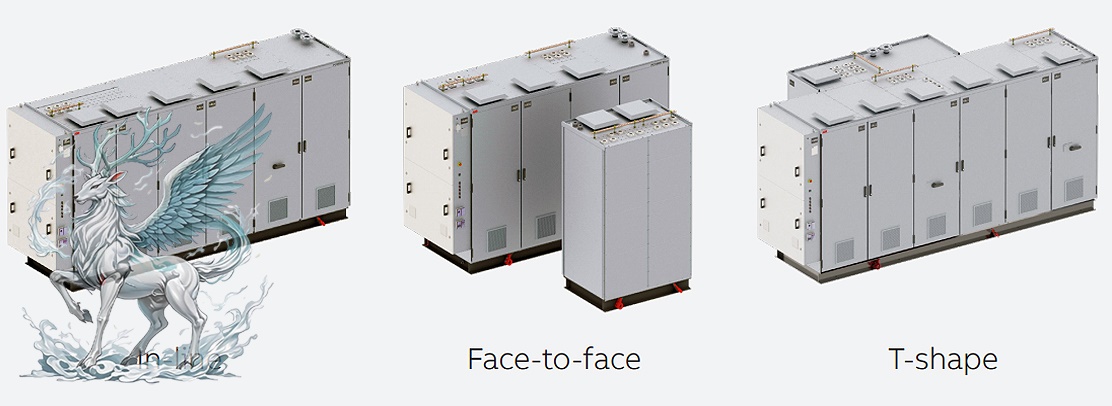

　　ABB High Voltage Inverter Rack PCS6000 Inverter Phase Module S-093N  3BHB009885R0001

　　S-093N 3BHB009885R0001 ACS6000 Inverter Phase Module

　　Product Positioning and Core Technology

　　System Affiliation:

　　Model Positioning: Belongs to the phase module of the ACS6000 series medium-voltage frequency converter (such as sub-models S-093N, S-093M, S-093H, etc.). It adopts a three-level neutral point clamp (NPC) circuit design, supports reverse-conducting IGCT power devices, and achieves high-efficiency energy conversion and low harmonic output (THD<3%, compliant with IEEE 519 standard).

　　Technical Architecture: Employs reverse-conducting IGCT (Integrated Gate Commutated Thyristor) power devices to construct a three-level neutral point clamping (NPC) circuit, supporting high-frequency switching (kHz level) for efficient DC-AC/AC-DC conversion.

　　Voltage and Power: Suitable for 6kV/10kV voltage levels, with rated power covering megawatt levels (e.g., 9MV, 7MV scenarios), supporting direct grid connection or connection via an input isolation transformer.

　　Key Parameters:

　　Power Range: Suitable for high-power scenarios of 4-120 MVA, with voltage levels covering 3.3kV and below.

　　Electrical Parameters:

　　Input Voltage: 24V DC ±10% (standard), with optional 110-220V AC/DC wide voltage version.

　　Power Consumption: ≤15W (full load).

　　Output Signals: Digital outputs (8-channel dry/wet contacts), analog outputs (4-channel 4-20mA or 0-10V DC), relay outputs (4-channel, 5A@250V AC/3A@30V DC).

　　Efficiency and Harmonics: System efficiency ≥92%, Total Harmonic Distortion (THD) <3% (compliant with IEEE 519 standard).

　　Environmental Adaptability: Operating temperature -25℃ to +70℃, IP20 protection rating (higher options available), suitable for harsh industrial environments such as humidity and vibration.

　　Communication Capabilities: Supports PROFIBUS DP, Modbus TCP/IP, Ethernet (OPC UA/IEC 61850 optional), compatible with Siemens, Omron, and other PLCs and ABB 800xA control systems.

　　Precise Phase Control: Synchronizes voltage/current phase to ensure stable system operation under power grid fluctuations or load changes.

　　Four-Quadrant Operation: Supports regenerative braking to improve energy efficiency (system efficiency ≥92%).

　　Power Quality Management: Enables reactive power compensation and fault ride-through in STATCOM applications, conforming to the IEEE 519 harmonic standard (THD < 3%).

　　Protection Functions: Overvoltage/undervoltage, overcurrent, short circuit, and over-temperature protection; built-in fast fault isolation mechanism.

　　Interfaces and Communication:

　　High Voltage Input/Output: Hard copper busbars with insulated fasteners.

　　Fieldbus: Supports PROFIBUS DP, Modbus TCP/IP, OPC UA, and IEC 61850.

　　Compatibility: Seamless integration with ABB 800xA and AC 800M control systems and third-party PLCs (such as Siemens and Omron).

　　Application Scenarios:

　　Industrial Drives: Energy-saving speed control for fans, pumps, and conveyors; precise start/stop and speed regulation of production line motors.

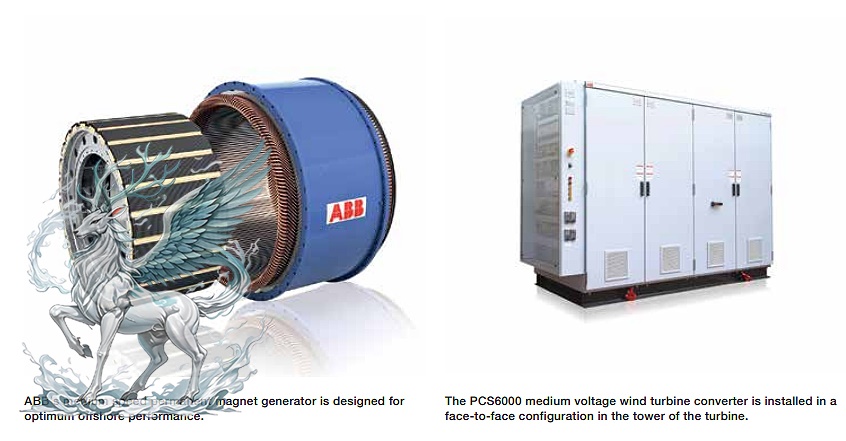

　　New Energy Fields: Wind power pitch control systems and yaw drive control; solar tracking system motor drives; power quality optimization for energy storage systems.

　　Rail Transit: Dynamic speed control and regenerative braking for subway and light rail vehicles.

　　Heavy Industrial Environments: Suitable for demanding environments such as oil and gas, mining, and metallurgy, featuring modular design and a dual-mode cooling system (air-cooled/water-cooled).

　　Maintenance and Operation Characteristics:

　　Modular Design: Supports hot-swapping for quick replacement of faulty modules, reducing downtime; flexible rack/rail mounting, compatible with 19-inch standard racks.

　　Diagnostics and Monitoring: Built-in LED status indicators (e.g., RUN/ERR), supports self-diagnostic functions; parameter configuration, fault diagnosis, and status monitoring via ABB Control Builder tool.

　　Cooling System: Dual-mode closed-loop cooling design ensures stable operation in high-temperature environments.

　　Lifespan and Reliability: Mean Time Between Failures (MTBF) > 100,000 hours; utilizes long-life capacitors and inductors, with a design life exceeding 15 years.

　　Physical Characteristics and Compatibility

　　Mechanical Design: Compact design (approx. 4×25.3×27.3cm), weight 1.72-1.75kg, supports 19-inch rack or DIN rail mounting, IP20 protection rating (higher protection optional).

　　Maintenance and Upgrades: Supports live replacement (hot-swappable), equipped with self-diagnostic functions and LED status indicators, global spare parts supply and technical update services provided.

　　Installation of S-093N 3BHB009885R0001 Phase Module

　　Safety and Preparation

　　Before performing any operations on the phase module, completely disconnect, lock, tag, and ground the ACS6000 driver.

　　Follow the ABB manual to allow the DC link to discharge for the specified time, and confirm the absence of voltage with appropriate instruments.

　　Close the cooling water valve to release pressure and allow the module to cool; wear appropriate personal protective equipment for medium-voltage work (arc protector, insulating gloves, face mask, safety shoes).

　　Ensure the work area is clean, dry, anti-static, and has sufficient space for lifting equipment and module handling.

　　Tools and Lifting Equipment

　　Slide two support rails into the brackets below the phase module inside the cabinet.

　　Safety pins for securing the rails, a crane rated to the module's weight, a lifting boom, and two M12 bolts for securing the lifting boom to the module.

　　Torque wrench (maximum torque 83 Nm), hex socket for tightening bolts, and basic hand tools for installing brackets and covers.

　　Removing the Old Phase Module

　　Confirm the drive is grounded and the cooling system is isolated.

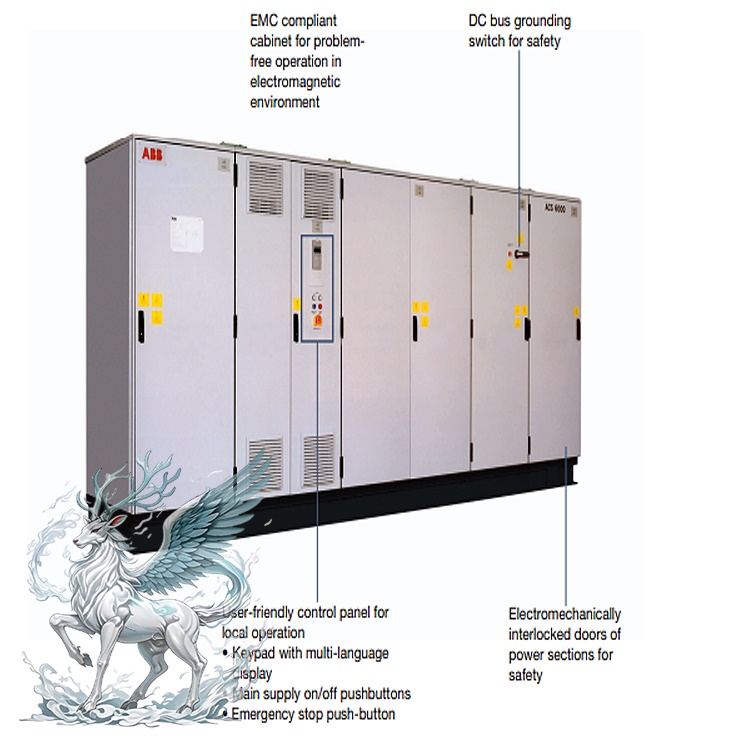

　　Remove all front covers to access the phase module in the ACS6000 cabinet.

　　Insert the two rails under the module: slide them in until they engage with the rear bracket, then lock them in place with the front safety pins.

　　Loosen and remove the four main fastening bolts securing the phase module to the cabinet (typically two upper bolts and two lower bolts).

　　Connect the crane to the three lifting points on the cabinet, then attach the boom to the module using two M12 bolts.

　　Slightly lift to reduce weight, then carefully slide the module out along the guide rails. If necessary, place it on a flat surface for further processing. 3. Prepare the new S-093N 3BHB009885R0001

　　Before installation, check for shipping damage, loose parts, or bent connectors.

　　Verify that the part number and version (S-093N 3BHB009885R0001) match the original module and ACS6000 configuration.

　　Keep water pipe connections sealed/clean, and ensure all electrical connections are intact and dry.

　　Install the new phase module

　　Lubricate the four fastening bolts with MOLYKOTE Type D grease as per ABB specifications.

　　Attach the boom to the new module using two M12 bolts and connect it to the crane.

　　Lift the module, align it with the cabinet opening, and place it on the support rails.

　　Slowly push the phase module along the rails towards the rear wall until it stops in the designated position.

　　Install the fastening bolts, first the top pair, then the bottom pair, tightening them evenly.

　　Use a torque wrench to tighten all four fastening bolts to 83 Nm (the value given for the phase module in the ACS6000 maintenance manual).

　　Remove the crane, boom, and support rails (pull out the safety pins, then slide the rails out).

　　Reconnect the cooling water pipes according to the drive installation instructions, paying attention to the correct inlet/outlet positions and minimum clearance from the busbars. Completely reconnect all electrical connectors and grounding wires as they were on the removed module.

　　Final Inspection and Commissioning

　　Check the cabinet for any remaining tools, bolts, or foreign objects, and ensure all covers and doors have been reassembled.

　　Restore the cooling water supply, check for leaks, and ensure flow and pressure are normal before powering on.

　　Remove the grounding wire and lock/tag as per the on-site procedures, then power on according to the ACS6000 startup sequence and monitor for alarms or unusual sounds.

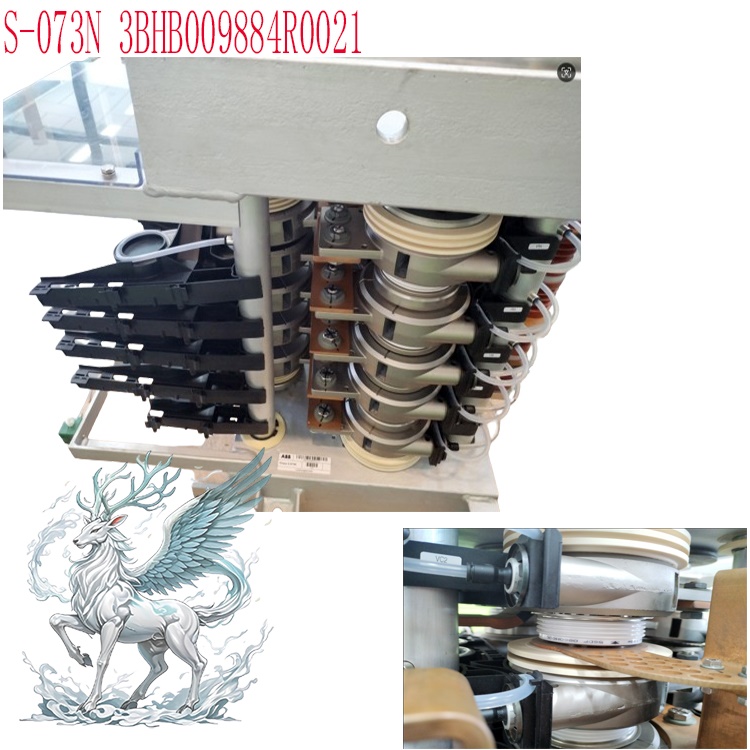

　　If any diode/IGCT work has been performed on the module, follow the specific clamp gauge and reassembly steps in "Replacing Diodes and IGCTs in 7/9 MVA Phase Modules" before installation.

　　In summary, this module is a core component of ABB's high-voltage inverter system, renowned for its high reliability, low harmonic output, and flexible integration capabilities. It is suitable for precision power control needs in various fields such as industry, energy, and transportation.
