　　5SHX0660F0001 3BHB003387R0101 Other Names:

　　High-voltage frequency converter module 5SHX0660F0001 3BHB003387R0101

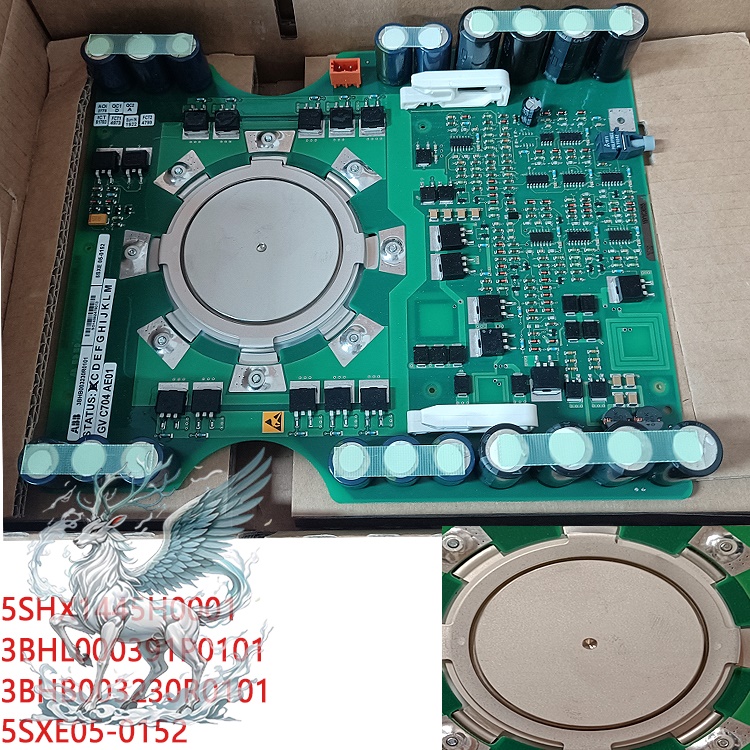

　　5SHX0660F0001 3BHB003387R0101  IGCT module

　　I. Core Functions of the Module

　　High-power high-speed switching: Receives fiber optic signals from the gate drive board, achieving controllable turn-on and rapid turn-off; completes AC-DC-AC power conversion, with the dual advantages of high current tolerance of thyristors and high-speed turn-off of IGBTs, eliminating the need for an external RC buffer circuit.

　　Bidirectional energy flow: Built-in anti-parallel diodes allow reverse current freewheeling, supporting four-quadrant operation; energy is fed back to the DC bus and the grid during motor braking.

　　Fault Short-Circuit Failure Mode: Press-fit devices tend towards a stable short-circuit state upon damage, reducing the risk of explosion and arcing, protecting the entire power unit, suitable for critical industrial equipment (ABB Group).

　　Low-Loss Power Conversion: Low on-state voltage drop reduces overall heat generation, adapting to high-power water-cooling systems and improving overall converter efficiency.

　　II. Role in the ACS6000 Medium-Voltage Inverter System

　　The ACS6000 is a medium-voltage high-power motor drive system. The modules are installed within the phase modules of the ARU active rectifier unit and the INU inverter unit.

　　ARU Active Rectifier Side (Grid Side): Each phase arm uses this IGCT to convert the grid medium-voltage AC power into DC bus voltage; it can control the grid-side power factor and suppress harmonics; in motor feedback mode, it sends regenerative energy back to the grid, achieving four-quadrant operation.

　　INU Inverter Side (Motor Side): Following the PWM pulses of DTC (Direct Torque Control), the IGCT (Inverter Gate Circuit) switches on and off at high speed, converting DC to medium-voltage AC output with adjustable frequency and voltage, driving high-power asynchronous/synchronous motors to achieve speed regulation and torque control.

　　System-Level Role: The core of power conversion for each phase of the entire inverter system, determining the inverter's maximum output power and dynamic response capability; working with the gate drive board to complete overcurrent and overvoltage protection, and quickly blocking pulses in case of faults.

　　Typical Applications of ACS6000: Mine hoists, rolling mill main drives, large water pumps and fans, and ship main propulsion drives.

　　III. Role in the PCS6000 System

　　PCS6000 has two main product lines: Wind power full-power converters and STATCOM (Static Var Compensator) devices from ABB Group.

　　PCS6000 Wind Power Converter

　　Router-Side Converter: The IGCT rectifies the AC output from the wind turbine generator, controlling the generator speed.

　　Grid-Side Converter: Inverts the AC power to meet grid standards for grid connection; supports active and reactive power regulation and low-voltage ride-through.

　　PCS6000-STATCOM Reactive Power Compensation: The IGCT forms an H-bridge/multilevel power unit, rapidly generating or absorbing reactive power; suppressing grid flicker and three-phase imbalance, stabilizing bus voltage, and improving power quality.

　　The PCS6000 system relies on this IGCT to achieve high power and high response speed, meeting stringent grid connection specifications.

　　IV. Application Areas:

　　Metallurgical Industry: Rolling mill main drive, coiler, frequent acceleration and deceleration conditions in four quadrants.

　　Mining Industry: Mine hoists, large crushers, electric shovel drives, heavy-duty impact loads.

　　New Energy Power: Full-power converters for high-power offshore/onshore wind turbines; STATCOM dynamic reactive power compensation on the grid side.

　　Marine & Marine Engineering: Electric propulsion for ships; high-power transmission for offshore platforms.

　　Public Utilities: Large high-pressure water pumps; wind turbine compressor transmissions.

　　Power Quality Management: Flicker mitigation for industrial power grids; reactive power compensation devices for electric arc furnaces.
