　　Other names for UMP 3009:

　　Controller Unit UMP 3009

　　UMP 3009 Redundant Processor Unit

　　Analog Unit UMP 3009

　　The TRICONEX UMP 3009 is a core component of Schneider Electric's Triconex series of Safety Instrumented Systems (SIS), designed specifically for high-risk industrial scenarios. It integrates a Triple Modular Redundancy (TMR) architecture and high-performance processing capabilities, meeting SIL3 safety certification standards.

　　Core Technical Features

　　TMR Redundancy Architecture: Based on a Triple Modular Redundancy (TMR) design, it achieves error-free decision-making through a hardware-level "two out of three" voting mechanism. Supports full redundancy configuration of power supply, I/O modules, and communication bus. In the event of a single power supply failure, the backup power supply can operate independently. In the event of a single channel hardware failure, the remaining channels continue to operate, ensuring system continuity.

　　High-performance processing: Equipped with a high-performance multi-core processor (such as a 32-bit RISC CPU or PowerPC series), large-capacity memory (such as 8MB Flash + 8MB SRAM), and SSD solid-state drive, with a scan cycle as low as 25ms, supporting complex logic operations and real-time data processing.

　　Communication capabilities: Supports multiple protocols including Modbus, Profibus, TCP/IP, UDP/IP, Ethernet, and RS-232. Compatible with Peer-to-Peer, master/slave protocols, and OPC interfaces, allowing seamless integration with DCS, PLC, engineering workstations, and remote devices.

　　Safety and diagnostics: Complies with SIL3 safety level and is certified to standards such as IEC 61508, IEC 61511, and ISA S84.01. Features overload protection, short-circuit protection, and overvoltage protection. Built-in online diagnostic system supports fault early warning and SOE (Sequence of Events) accuracy up to 1ms. Remote monitoring and recording are achieved through TriStation software.

　　Diagnostics and Self-Healing: Built-in online diagnostic function covers power supply, I/O channels, communication bus, and processor status. Supports fault early warning and SOE accuracy up to 1ms. Remote monitoring and recording are achieved through TriStation software.

　　Modular Design: Supports hot-swappable replacement of power supply, I/O modules, and processor. Built-in battery can maintain data backup for 6 months, ensuring no program loss. Dimensions: 39×42×3cm, weight: 2.5kg, operating voltage: 24Vdc/120Vac, adaptable to a wide temperature range of -40°C to +70°C and meets vibration and electromagnetic interference resistance requirements.

　　Expandability: Supports up to 118 I/O modules (analog/digital) and optional communication modules. Modular design supports hot-swappable replacement and is compatible with TriBus bus and works in conjunction with the main processor.

　　Application Scenarios

　　Petrochemical Industry: Used for reactor temperature/pressure interlocking, centrifuge torque control, surge protection (e.g., main fan surge protection), emergency shutdown systems (ESD), and pipeline monitoring.

　　Power Energy: Applied to generator protection, power grid safety control, burner management systems (BMS), and nuclear power plant safety control.

　　Metallurgy and Pharmaceutical Industry: Enables safety interlocking of boilers and reactors and intelligent control of bioreactors in high-temperature/high-pressure environments.

　　Other Fields: Covers wastewater treatment, railway signaling systems, building automation (HVAC/lighting/security), and aviation transportation, meeting the needs for precise control and safety monitoring.

　　Safety Certifications and Standards

　　International Certifications: Certified by authoritative organizations such as TÜV, UL, ATEX, IECEx, CSA, and GOST, meeting Zone 1/2 hazardous area requirements (requires use with intrinsically safe barriers).

　　Fail-Safe Design: Adopts the "fail-safe" principle; in the event of hardware/software failure, preset safety actions (such as emergency shutdown) are automatically triggered to ensure the system enters a safe state. AI-enhanced security technology optimizes HAZOP analysis, improving risk identification and control capabilities.

　　Maintenance Support and Lifecycle Management

　　Modular Maintenance: Supports hot-swappable replacement of faulty modules, reducing downtime; built-in battery maintains data backup for 6 months, ensuring no program loss.

　　Remote Support: Enables remote configuration, debugging, and fault diagnosis via TriStation software, providing online training and technical support with fast response times (e.g., response within 2 hours, on-site repair within 24 hours).

　　Lifecycle Services: Provides a 5-year battery replacement cycle, regular safety assessments, and firmware upgrades. Combined with the Process Safety Advisor digital tool, it monitors SIF (Safety Instrumented Function) performance in real time, generating safety KPI reports and alerts to ensure dynamic compliance.

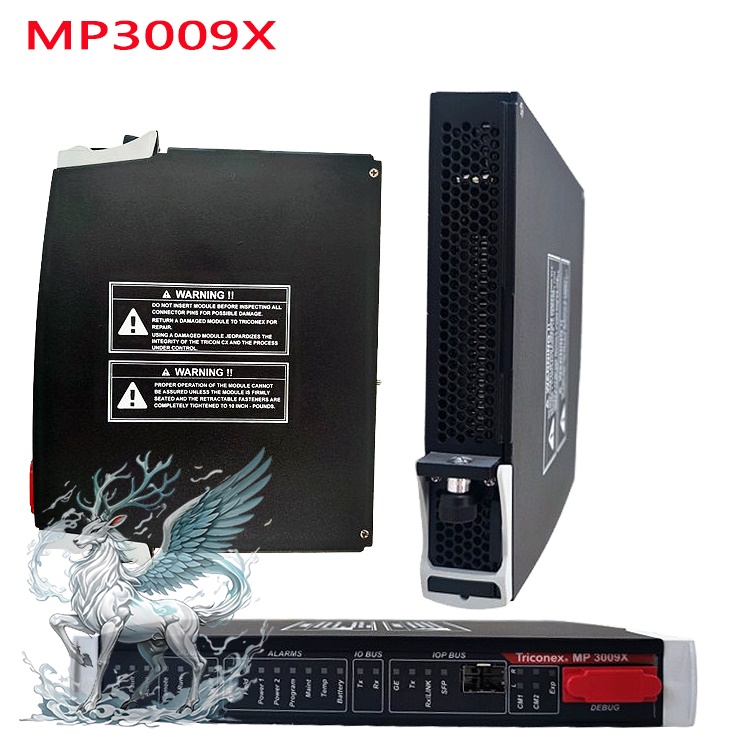

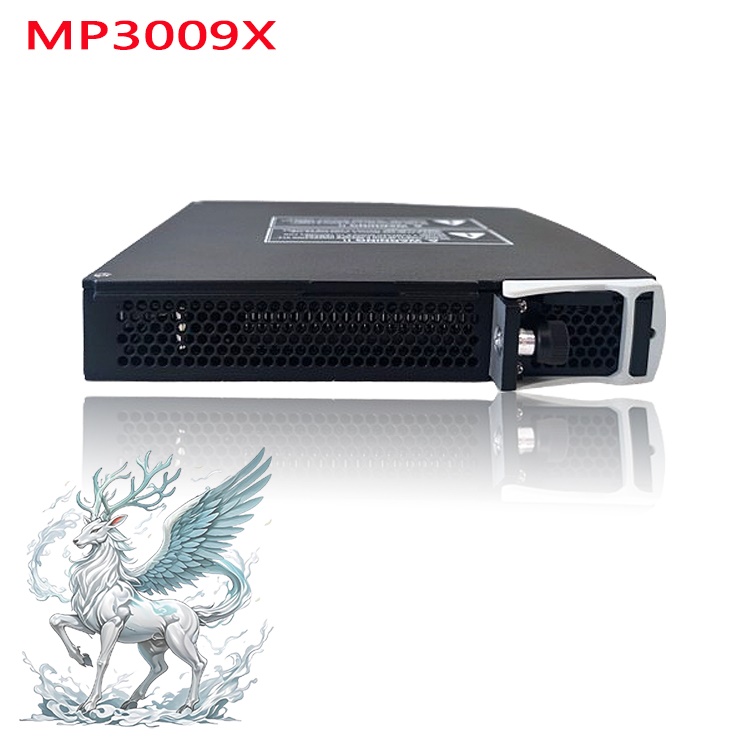

　　Differences from MP3009

　　Performance Improvements: As an enhanced version, the UMP 3009 features optimizations in processing power, memory capacity, communication protocol support, and redundancy design. For example, it supports a wider range of protocols (such as TCP/IP and UDP/IP) and higher data processing speeds.

　　Safety Certification: May include more stringent SIL3 certification and additional international standard compliance, such as the IEC 62443 safety standard.

　　Maintenance Extension: May offer more advanced remote support tools and longer lifecycle management services, such as extended firmware upgrade cycles or more comprehensive diagnostic capabilities.

　　Summary: The TRICONEX Enhanced Main Processor (UMP) Module 3009, with its TMR redundant architecture, high-performance processing capabilities, multi-protocol communication support, stringent safety certifications, and comprehensive maintenance support, has become a core component in the field of industrial safety control. Its modular design, hot-swappable functionality, and remote support capabilities significantly reduce maintenance costs and improve system reliability, making it widely used in high-risk industries such as petroleum, chemical, and power, ensuring the safe and reliable operation of critical equipment and processes.
