　　FC-SCNT01 51454926-176 Other Names:

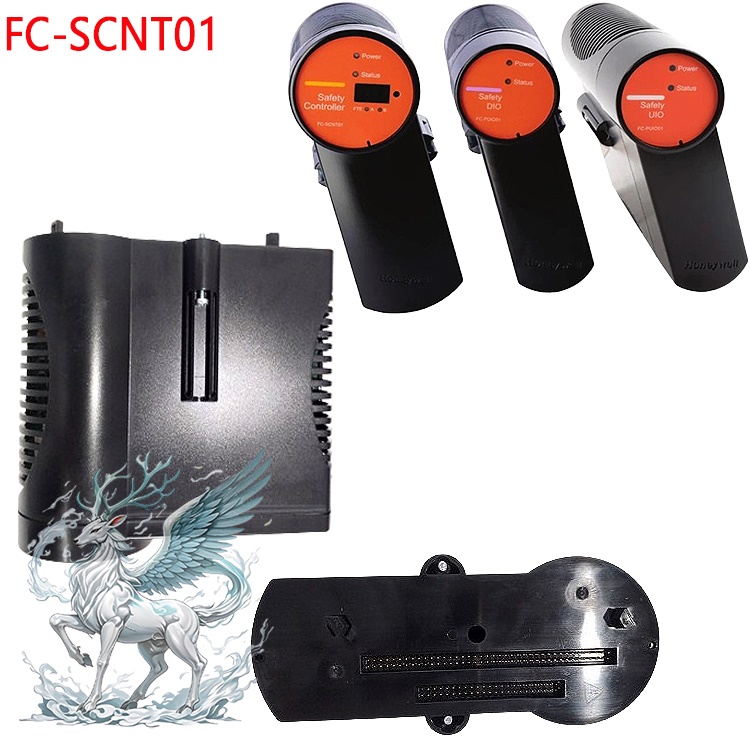

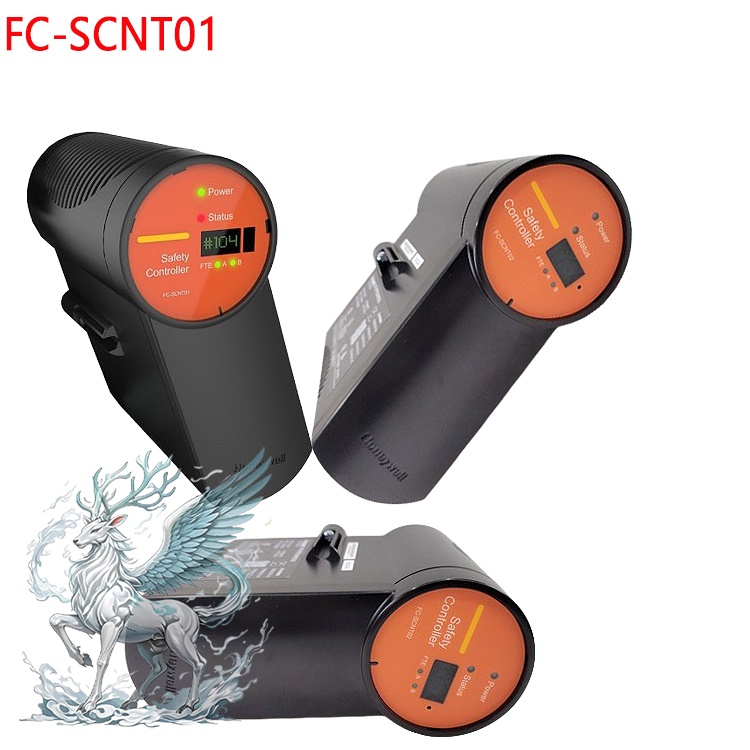

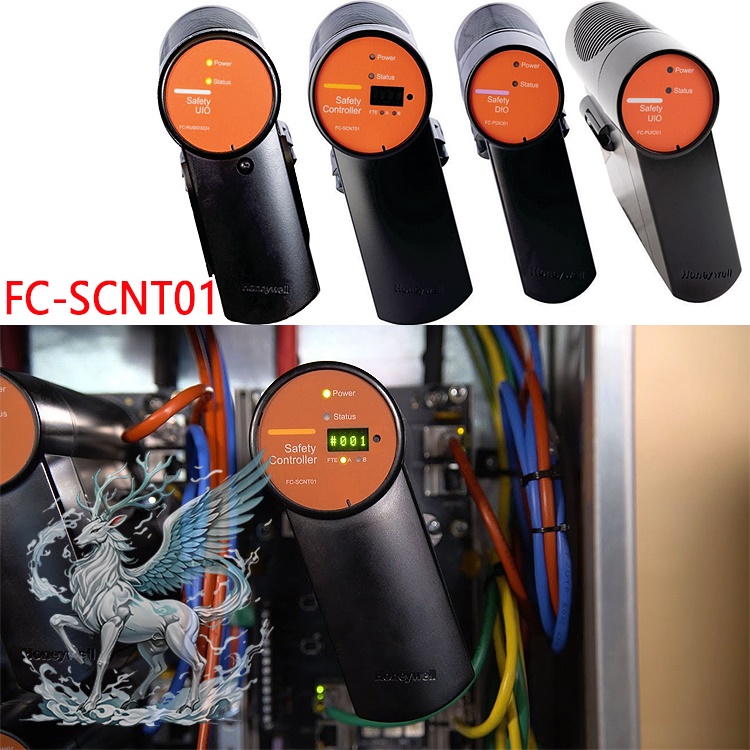

　　Safety Processor Module FC-SCNT01 51454926-176

　　FC-SCNT01 51454926-176  Safety Manager

　　The HONEYWELL  FC-SCNT01 51454926-176 SC S300 Safety Controller is a high-performance safety control module from Honeywell, designed specifically for industrial process safety applications and widely used in industries such as petrochemicals, power generation, metallurgy, papermaking, and pharmaceuticals.

　　Core Function: As a core module of Honeywell's Safety Instrumented System (SIS), it executes Safety Instrumented Functions (SIFs) to ensure the safe operation of industrial processes. It supports SIL 3 certification, meeting the highest safety integrity level requirements, and is suitable for critical scenarios such as petrochemicals, oil and gas production, and power plants.

　　Model and Certifications:

　　Belonging to the SC S300 series, it is SIL3 (Safety Integrity Level 3) certified, conforming to international safety standards such as ATEX and IECEx, and meeting the highest safety requirements.

　　The module model is FC-SCNT01 51454926-176, supporting 16-channel configuration (8 inputs + 8 outputs), and can be flexibly configured as AI (analog input), AO (analog output), DI (digital input), DO (digital output), etc., adaptable to various sensors and actuators.

　　Safety Certifications and Standards: Compliant with IEC 61508 SIL 3 safety standard, it has passed international certifications such as ATEX, IECEx, CE, EN54, NFPA 72/85/86/87, FM, and CSA Class 1 Div 2, and has obtained ISASecure EDSA Level 1/2 network security certification, ensuring dual protection of functional safety and network security.

　　Design Architecture: Employs a dual-channel redundant design, supporting QMR (Quadruple Modular Redundancy) architecture. It features a 32-bit RISC microprocessor with 256 KB program memory, 16 KB data memory, and up to 64 I/O points (supporting 8 inputs/8 outputs or mixed configurations). Communication interfaces include PROFIBUS DP, RS-232, Ethernet, and Modbus protocols, and it supports HART 7.0.

　　Power Supply and Electrical Characteristics:

　　Uses 24VDC power supply with power isolation to ensure stable system operation in the event of power failure or abnormality. Operating temperature range is -40°C to +70°C, suitable for harsh industrial environments.

　　Status Monitoring and Indication: Equipped with status indicator lights to display input/output status, power status, and fault information in real time, facilitating rapid fault diagnosis.

　　Features and Advantages

　　Safety Control Capabilities: Designed for scenarios such as Emergency Stop (ESD), Safety Instrumented Systems (SIS), fire and gas detection, burner management, and High Integrity Protection (HIPS), ensuring safety actions are triggered in abnormal situations (e.g., valve closure, alarm activation, emergency shutdown). Supports offline simulation and cloud engineering, enabling remote configuration and debugging, improving engineering efficiency.

　　Flexibility and Scalability: Utilizes Universal IO technology, each channel can be independently configured with different I/O types, supporting modular and scalable system design, reducing space and cost. Integrates with the Honeywell Safety Suite ecosystem, integrating gas detection, worker safety monitoring, and equipment management functions, enhancing overall safety and compliance.

　　Reliability and Maintenance:

　　Module design meets industrial-grade reliability standards, supporting hot-swappable and redundant configurations, reducing downtime.

　　User manuals and documentation provide detailed installation, configuration, and troubleshooting guidelines, supporting regular maintenance (e.g., power checks, communication line testing, card status monitoring).

　　I/O Capabilities: Supports digital input/output, with flexible channel configuration, compatible with field devices such as sensors and actuators. Status indicators display real-time input/output status, power status, and fault information.

　　Expansion Capabilities: Supports modular expansion, such as redundant I/O modules (e.g., FC-IOTA-R24) and safety digital I/O modules (SDIO), supporting up to 64 redundant I/O modules, flexibly configurable through I/O link configuration.

　　Dual-Channel Redundancy Design: Ensures fault tolerance and improves system reliability.

　　16-Channel Configuration: 8 inputs + 8 outputs, supports digital signal processing (e.g., switch status, sensor signals), compatible with 24VDC industrial power supplies.

　　High-Performance Parameters: 400mA output current, driving safety actuators; operating temperature range -40°C to +70°C, adaptable to harsh environments.

　　Communication and Integration: Supports standard protocols such as Modbus and Ethernet, seamlessly integrating with Honeywell Experion PKS and DCS systems to achieve a distributed control architecture.

　　Application Scenarios and Case Studies

　　Typical Industry Applications:

　　Industrial Sector: Widely used in discrete manufacturing (robots, conveyors, packaging machines), process industries (burners, boilers, pressure vessels), transportation (elevators, escalators, cable cars), and building safety (fire alarms, access control systems).

　　System Integration: Seamlessly integrated with the Honeywell Experion PKS system, supporting integrated integration with DCS/SCADA platforms to achieve alarm management, SOE event logging, and equipment health data visualization, improving operational efficiency and safety.

　　Petrochemical Industry: Used in refineries, ethylene plants, and coal-to-olefins projects (such as the Shenhua Baotou project) to monitor parameters such as pressure, temperature, and liquid level, and control key equipment (such as compressors and reactors).

　　Power Industry: Implements safety interlocks in cogeneration and boiler control, such as the DCS upgrade project of Shanghai Petrochemical Thermal Power Division, ensuring safe boiler operation.

　　Metallurgy and Paper Industry: Used in blast furnace control and paper machine safety systems to ensure production process stability and personnel safety.

　　Pharmaceuticals and Food: Monitoring environmental parameters in cleanrooms and aseptic production lines to ensure product safety.

　　Specific Cases:

　　Shanghai Petrochemical Thermal Power Division uses the Honeywell PKS300 control system, combined with the FC-SCNT01 51454926-176 module, to achieve boiler safety interlocks and prevent shutdowns due to misoperation.

　　Shenhua Baotou Coal-to-Olefins Project uses the Honeywell SIS system, employing the SC S300 controller for process unit safety protection.

　　Configuration and Maintenance Recommendations

　　Configuration Process:

　　Configure the system using Honeywell Experion PKS or Safety Manager software, configuring input/output channels, logic control algorithms, and alarm thresholds.

　　Supports offline simulation and cloud engineering for remote debugging and parameter optimization.

　　Maintenance Points:

　　Regularly check the status of power modules, communication lines, and cards to ensure fault-free operation.

　　Perform card replacement, firmware upgrades, and calibration operations according to the user manual to avoid electrostatic damage.

　　Utilize Honeywell Safety Suite for device management, enabling remote monitoring and compliance management of gas detectors.

　　Installation and Maintenance

　　Deployment Requirements: Installed in a control cabinet or field device. Parameters are set via configuration software (such as Safety Builder). Supports offline/cloud simulation for easy engineering debugging and testing.

　　Maintenance Support: Offers a 1-year warranty, supports remote diagnostics and troubleshooting, and features a modular design for rapid replacement and expansion, reducing downtime and maintenance costs.

　　Summary: The FC-SCNT01 51454926-176 SC S300 safety controller is a high-performance solution from Honeywell for industrial safety-critical applications. With its SIL 3 certification, redundant architecture, broad compatibility, and integration capabilities, it has become the preferred safety controller for industries such as petrochemicals, power, and transportation, helping companies achieve safe, efficient, and sustainable operational goals.
