　　Other Names for 3500/91:

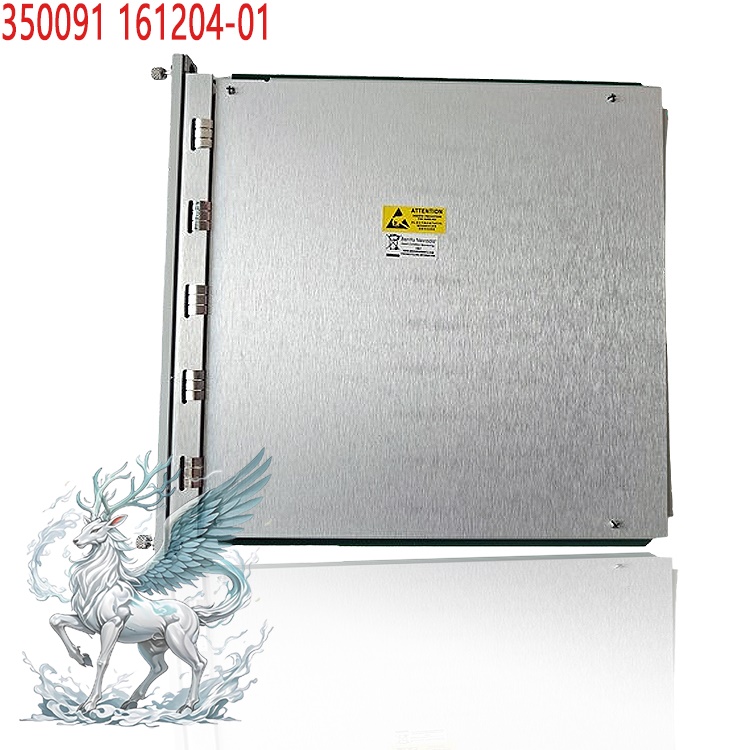

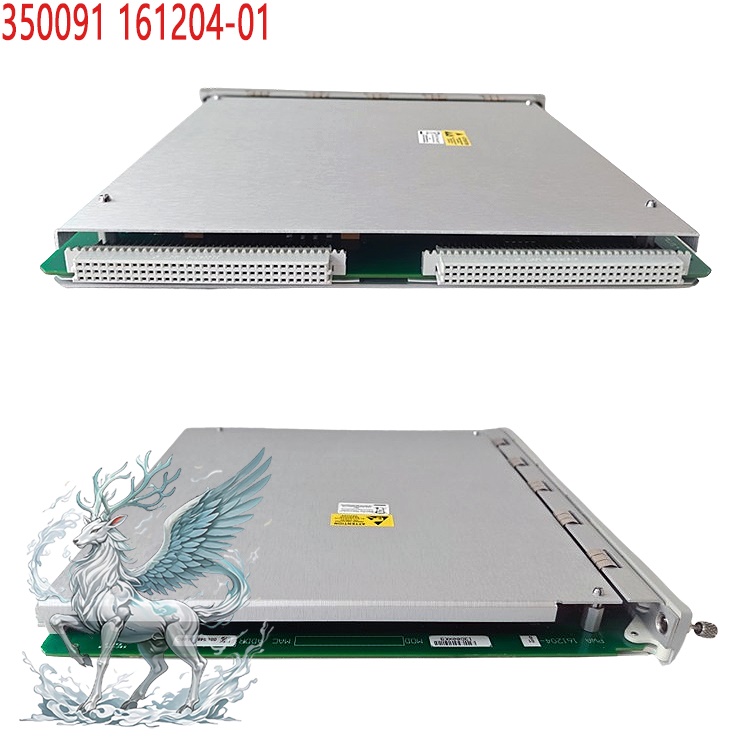

　　Input/Output Module 3500/91

　　3500/91 Communication Module

　　Digital Module 3500/91

　　Model Classification: Belongs to the communication gateway module of the Bently Nevada 3500 series machine monitoring system, designed specifically for industrial automation and equipment condition monitoring.

　　Core Functions:

　　Data Communication: Supports EGD (Ethernet Global Data) protocol, enabling real-time data exchange with DCS, SCADA, PLC, and other systems.

　　Multi-protocol compatibility: Integrates Modbus (serial/TCP), Modbus/TCP, and Bently Nevada proprietary protocols, adapting to serial (RS232/RS422/RS485) and Ethernet TCP/IP interfaces. Widely compatible with various automation systems.

　　Remote monitoring: Enables remote data acquisition, fault diagnosis, and equipment status management via Ethernet, supporting breakpoint resume and edge computing functions.

　　EGD V2.01 protocol: Compatible with control systems such as GE Mark VIe, achieving efficient Ethernet Global Data transmission and supporting producer/consumer data exchange modes.

　　Technical Specifications and Performance

　　Interfaces and Networking:

　　Ethernet Interface: 10BASE-T/100BASE-TX, RJ45 connection, compliant with IEEE 802.3 standard.

　　Serial Interface: Supports RS232/RS422/RS485, adapting to various industrial communication needs.

　　Power Consumption and Size:

　　Typical power consumption: 5.0 watts; dimensions: approximately 241mm × 24.4mm × 242mm (3500/92 as an example).

　　Operating temperature range: -30℃ to +65℃; IP20 protection rating; suitable for harsh industrial environments.

　　Data Acquisition:

　　Real-time acquisition of parameters such as vibration, temperature, and pressure; data update frequency ≤ 1 second (adjusted according to rack design).

　　Supports transmission of timestamped measurement values, module status, and alarm information.

　　Application Scenarios and Industry Adaptability

　　Typical Applications:

　　Rotating Equipment Monitoring: Vibration, displacement, and temperature monitoring of equipment such as turbines, generators, pumps, and compressors to prevent equipment failure.

　　Industrial Automation: Connects to DCS/SCADA systems for integrated production data and remote control, such as in the power, oil and gas, chemical, and metallurgical industries.

　　Hazardous Environments: Certified by CSA/NRTL/C, suitable for potential explosion risk areas such as petrochemical and coal mines.

　　System Integration:

　　Compatible with 3500 series racks (e.g., power modules, I/O modules), supports integration with System 1™ software for data analysis and fault prediction.

　　Integrates with GE Mark VIe, ABB, Siemens, and other control systems, breaking down data silos.

　　Installation and Maintenance:

　　Physical Installation: Occupies a full-height front slot in a 3500 rack, requires rear I/O modules, and supports dual power supply redundancy.

　　Configuration Management: Communication protocols, register addresses, and alarm thresholds are configured via dedicated software, with password protection to prevent unauthorized access.

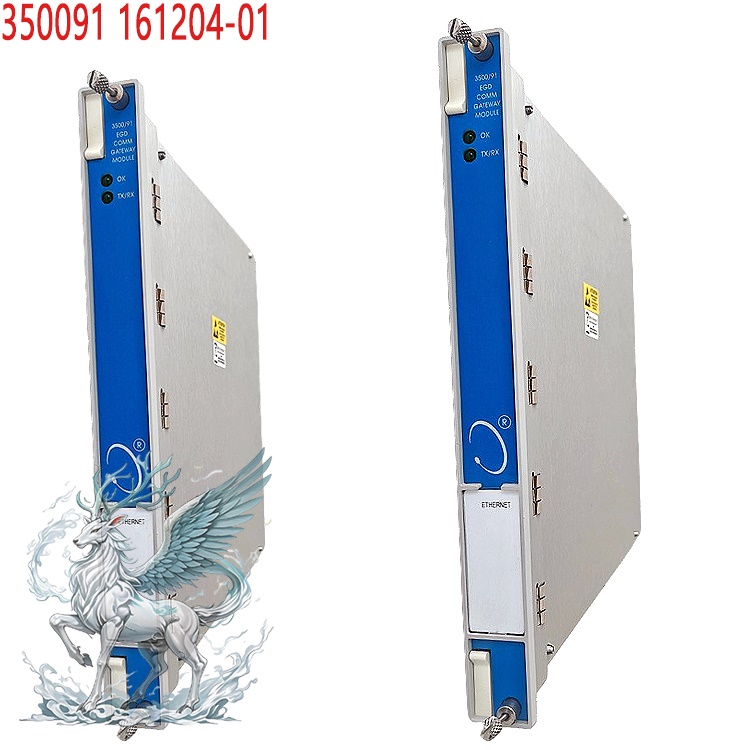

　　Maintenance Support: Provides LED status indicators (OK, TX/RX) for quick module status diagnosis; supports remote firmware updates and troubleshooting.

　　Added Value and Advantages:

　　Reliability: Employs industrial-grade components and undergoes rigorous testing (e.g., 100% factory inspection) to ensure long-term stable operation.

　　Scalability: Supports modular expansion to adapt to different sensors and monitoring needs, such as high-voltage DC power supply scenarios (e.g., power converter stations). Ecosystem Support: As a Honeywell product, it enjoys a global technical support network and spare parts supply guarantee, and is compatible with the System 1™ software ecosystem.

　　Summary: The 3500/91 EGD Gateway Module is a core communication component of the Bently Nevada 3500 series. With its multi-protocol support, high reliability, and broad industrial adaptability, it has become a key node for equipment condition monitoring and industrial automation integration, especially suitable for industrial scenarios with stringent real-time and security requirements.
